CHDV-650B Castle Vak Vertical Chamber Vacuum Sealer

TECHNICAL SPECIFICATIONS:

Chamber size 25.6" x 31.5"
Chamber depth 17.7"
Seal bar length 25"/640mm
Seal bar Width 10mm
Vacuum pump capacity 20h/m2 (x2) = 40h/m2
Power/Amp 25 Amps Min
Voltage 110V
Machine weight 397 lbs. / 180 kg
Machine size - L x W x H 38.1" x 37.8" x 51.2"


NEED POUCHES FOR YOUR VACUUM SEALER? IMPAK recommends the 8.5" x 13.0" O.D. Vacuum Bags

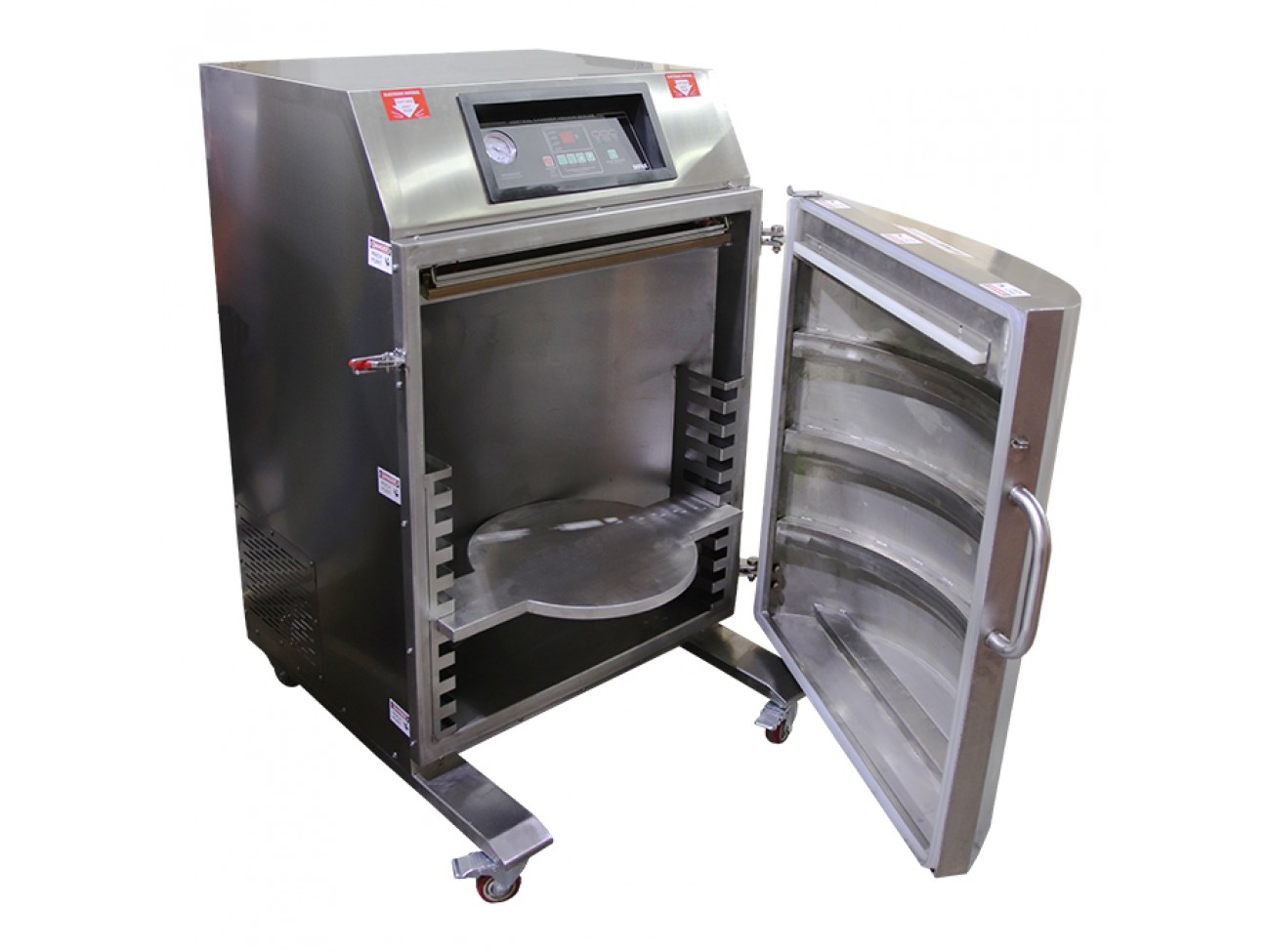

Gramatech and the IMPAK Corporation Family are proud to introduce the Castle VAK CHDV-650B, our first vertical chamber sealer. These simple but powerful machines are freestanding on casters to make it easy to position and use. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. The inner chamber has an adjustable floor to position large bags of powder or other problem products to position at the 25" top seal bar. Made from 304 stainless steel and features 2 vacuum pumps capable of pulling 40h/m2 vacuum together.

Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the CHDV-650B another great option for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.

PLEASE NOTE - 110V 25A power supply REQUIRED

IMPAK has supplied GCV-24LRPL machines for the following applications:

  • Sous Vide
  • Pet food packaging
  • Test kitchens
  • Beef jerky packaging
  • Bio test labs ( Non Validatable applications)
  • Fishing/Game storage
  • Restaurants
  • Many more

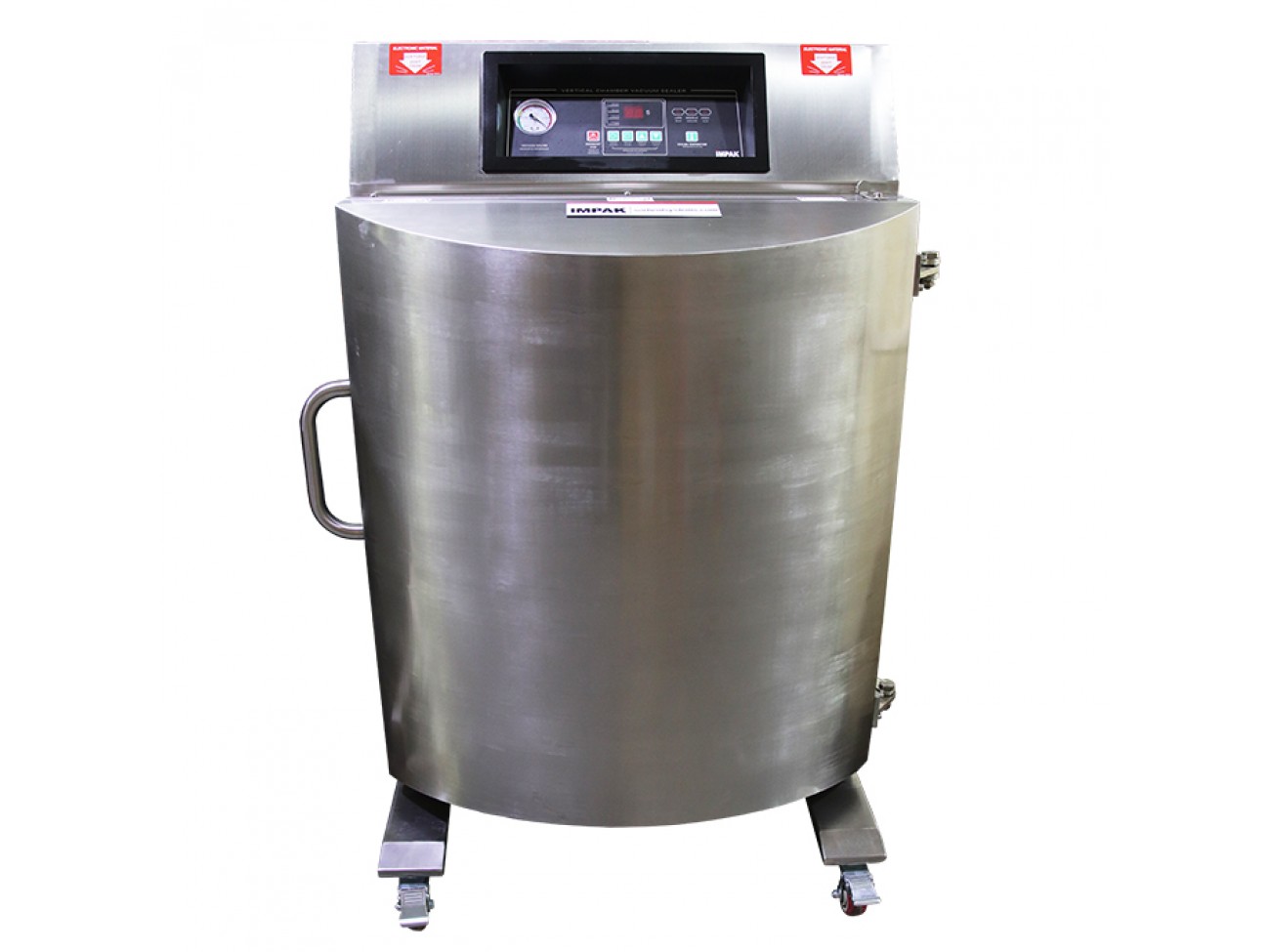

CHDV-650B: Castle VAK Freestanding Vertical Chamber Sealer (1 Bar, 110V, 25A)

  • $7,890.76
