10" Press Sealer (PS-255) - Overview
How to Change Spare Parts Guide (PS-255)
Vertical Mounting Instructions (PS-255)
CHDV-650B Castle Vak Vertical Chamber Vacuum Sealer
TECHNICAL SPECIFICATIONS:
| Chamber size | 25.6" x 31.5" |
| Chamber depth | 17.7" |
| Seal bar length | 25"/640mm |
| Seal bar Width | 10mm |
| Vacuum pump capacity | 20h/m2 (x2) = 40h/m2 |
| Power/Amp | 25 Amps Min |
| Voltage | 110V |
| Machine weight | 397 lbs. / 180 kg |
| Machine size - L x W x H | 38.1" x 37.8" x 51.2" |

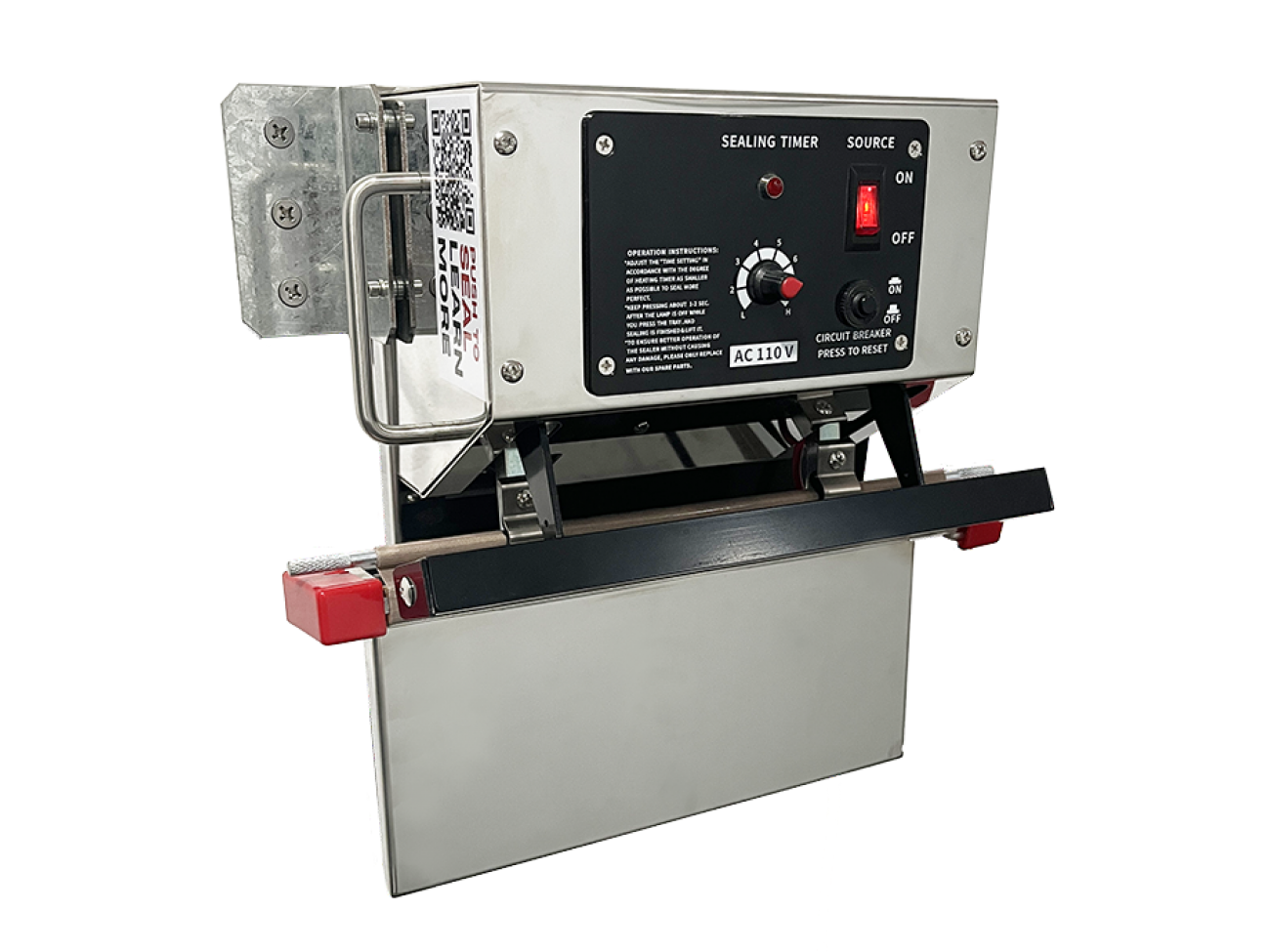

This wall mounted or tabletop impulse heat sealer provides reliable and strong seals in a compact and easy to use form factor. By pressing on the tray you can engage the heat seal jaws with little fuss. it is asy to operate - hand press – with no warm-up time. Perfect for quick easy motions, or to help people with dexterity issues. The optional vertical wall mount is ideal for anyone sealing difficult products like liquids (to keep the packaging upright and stable while sealing), or anyone who wants to save on counter space. Each unit features a stainless steel construction, and is available with 204mm, 255mm, or 305mm seal (8", 10" , or 12") widths. Heating elements easily accessible and simple to replace.
Seal type: Single Impulse Heating Element
Voltage: 120V/60Hz
Power: 530W
Seal Width: 5mm
Seal Time: 2 to 3 seconds
Seal Length: 204mm, 255mm, or 305mm
