GCV-24LR Castle Vak Chamber Vacuum Sealer

TECHNICAL SPECIFICATIONS:

Chamber size 24.7" x 24.7"
Chamber depth 6.3"
Seal bar length 24"/610mm (x2)
Seal bar Width 10mm
Vacuum pump capacity 24m3/h (x2) = 48m3/h (dual 1 1/4 hp)
Power/Amp 14 Amps Max
Voltage 220V/1PH/60Hz
Machine weight 350 lbs. / 160 kg
Machine size - L x W x H 29" x 29" x 38.5"


NEED POUCHES FOR YOUR VACUUM SEALER? IMPAK recommends the 8.5" x 13.0" O.D. Vacuum Bags


Gramatech and the IMPAK Corporation Family are proud to introduce the Castle Vak line of Chamber Vacuum Sealers. These simple but powerful machines are brining the advantages of a pressurized vacuum seal to more people than ever before. The GCV-24LR is the freestanding single chamber on caters and features two 24" seal bars on either side of the chamber, a transparent acrylic lid to see the process in the chamber, and integrated dual 20m3/h Vane Oil Vacuum Pumps (totaling a 40m3/h flow rate). The power and size make the GCV-24LR one of the best options for home hunters/fisherman, long term storage, and small prosumer applications where reliability and safety are important.

PLEASE NOTE - 220V Single Phase power supply REQUIRED

IMPAK has supplied GCV-24LR machines for the following applications:

  • Sous Vide
  • Pet food packaging
  • Test kitchens
  • Beef jerky packaging
  • Bio test labs ( Non Validatable applications)
  • Fishing/Game storage
  • Restaurants
  • Many more

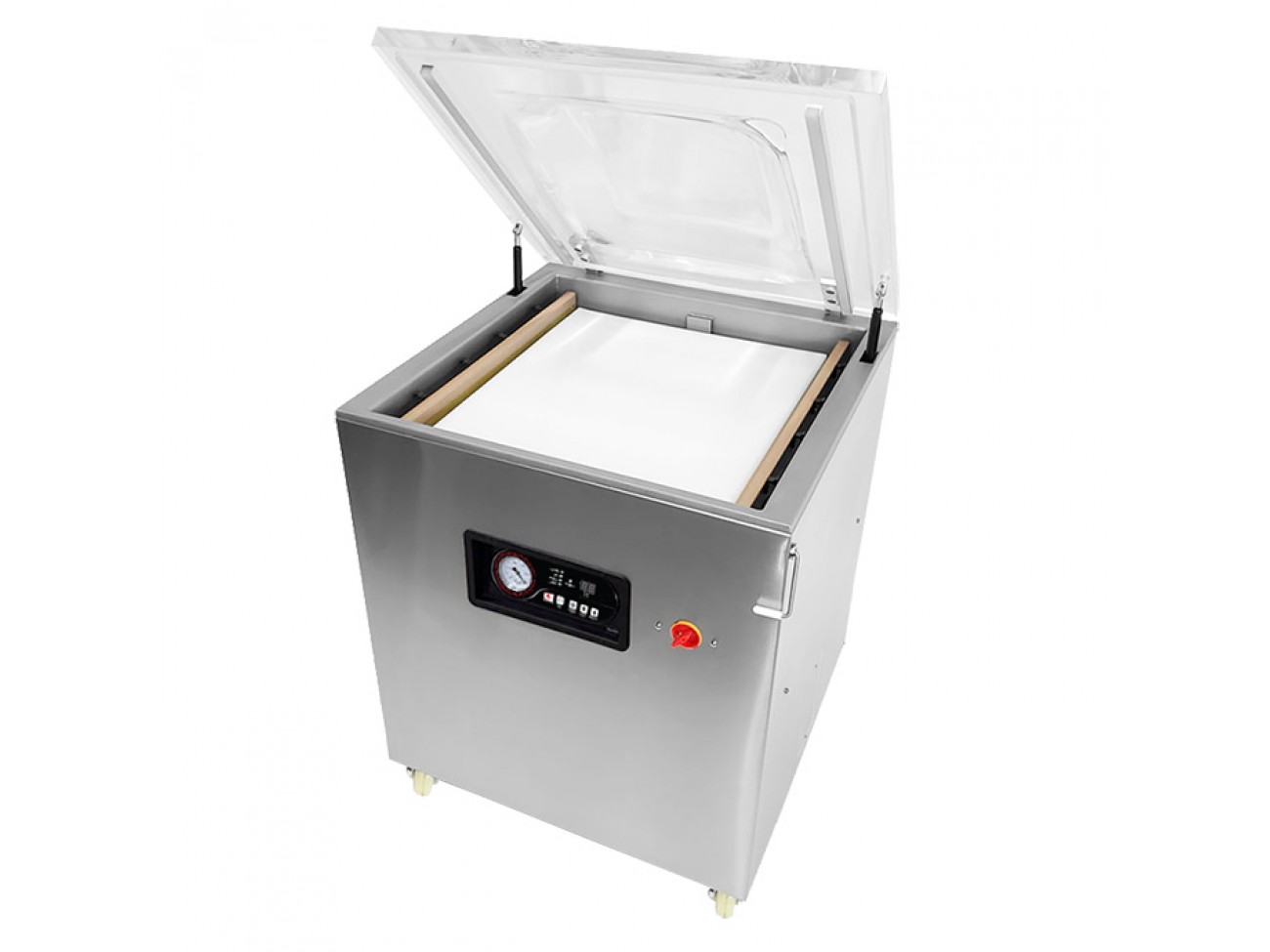

GCV-24LR: Castle Vak 24" Freestanding Chamber Vacuum Sealer (2 Bar, 220V)

  • $3,009.76
